RCA plug
Audio plug "RCA/XLR Plug"

Feel the power of copper.

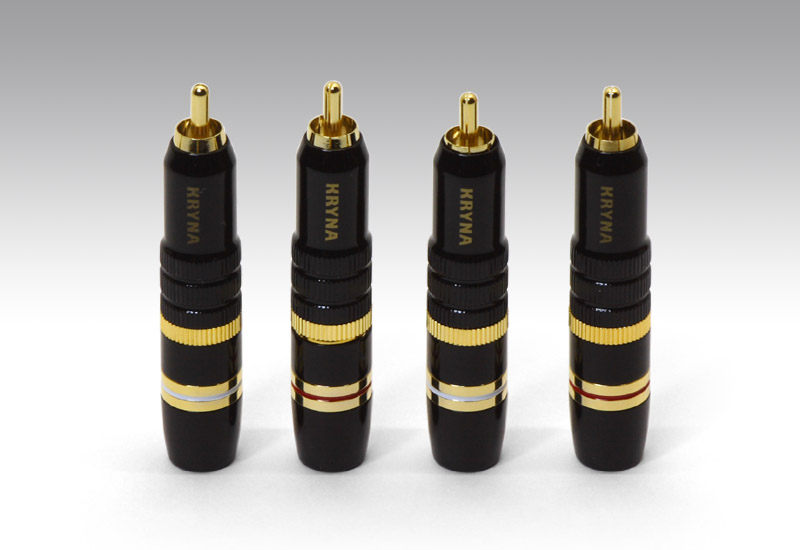

RCA-9B

RCA-9B

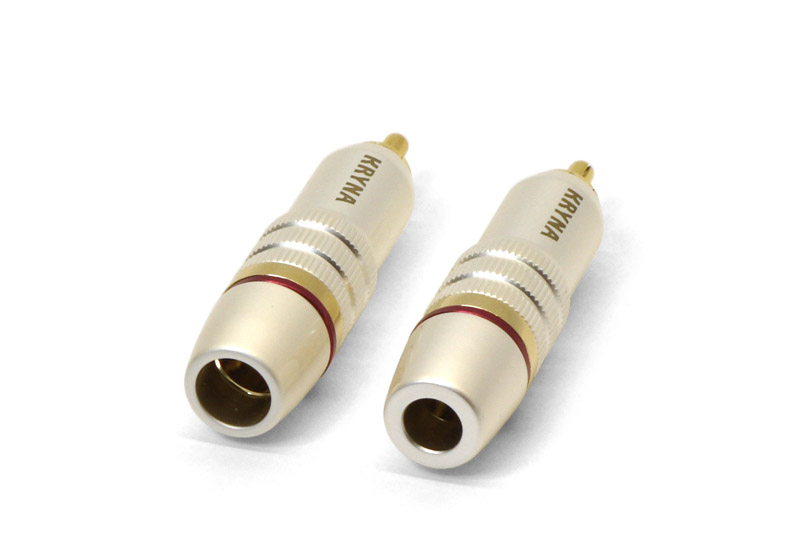

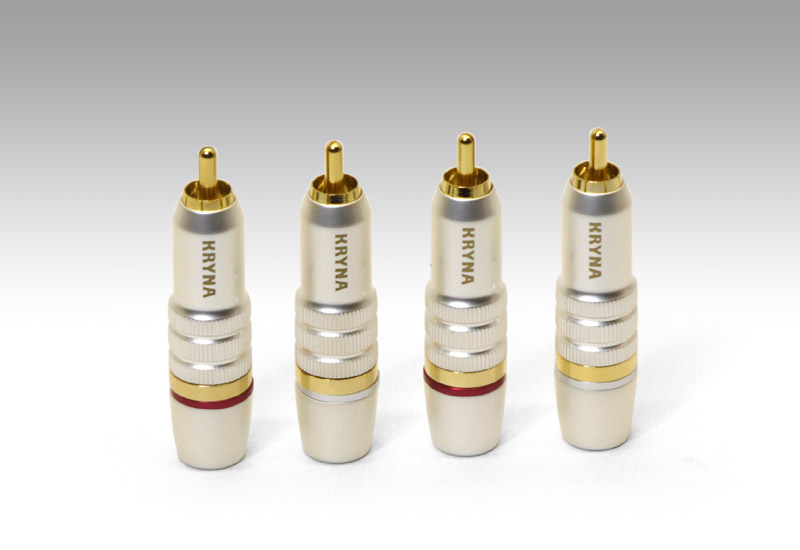

RCA-9S

RCA-9S

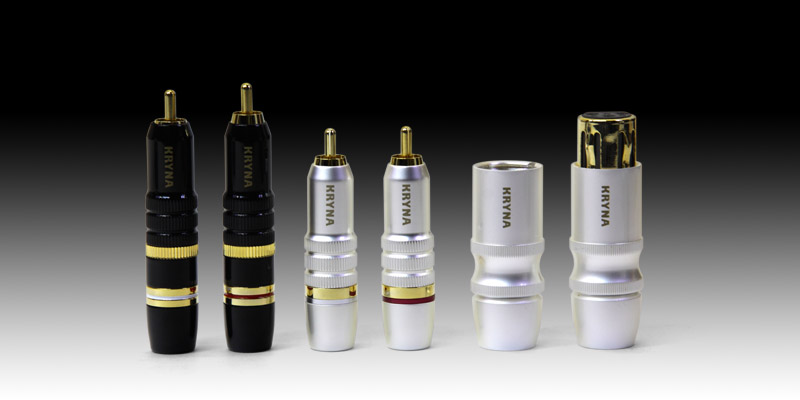

Left : RCA-9S, Right : RCA-7S

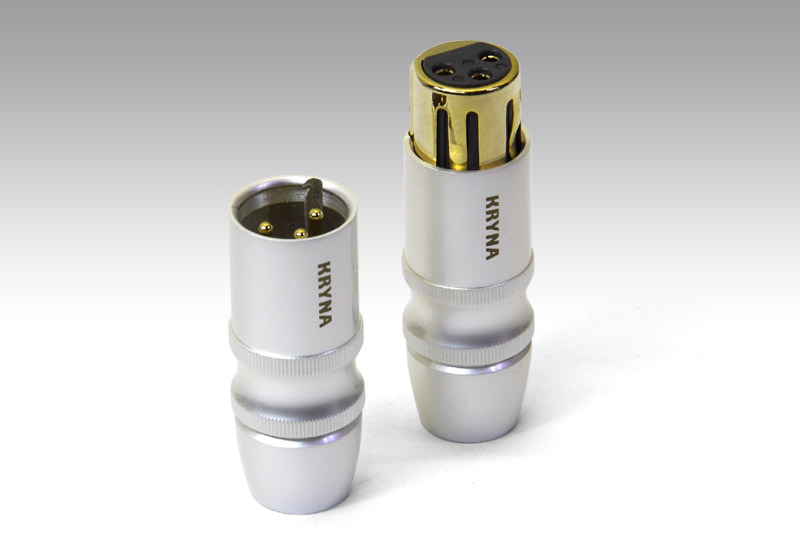

XLR-9M/XLR-9F

XLR-9M/XLR-9F

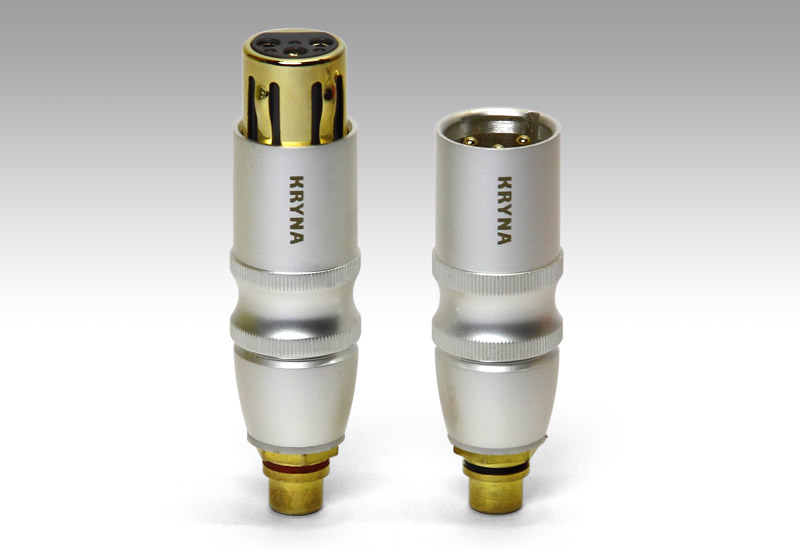

XLR/RCA Converting Plug

XLR/RCA Converting Plug

RCA Plug

The RCA plug of KRYNA has sleeve (cove) made of copper (machined) to shut damaging influence caused by noise and the magnetic field from outside. The plug also uses chuck method in which sleeve part is turned to fasten the terminal from outside and securely fix the terminal to the equipment. With the tight connection that prevents from falling out or loosening, you can use the plug for long hours with ease.

Because the plug is securely connected with the terminal, the transmission loss will be eliminated. This will enhance information amount and expand the sound field space to create more real holographic sound.

You can choose the plug from three sizes: black long type with Ø9mm hole (used for the Inca7), pearlized silver short type with Ø7mm hole and Ø9mm hope (used for the Inca5, 3, and Dica01).





XLR Plug

The characteristic of the XLR plug by KRYNA is its finish with an elegant texture and dignity which gracefully sparkles like a pearl. It smoothly achieves a clear and elegant reproduction of music, worthy of its appearance.
The secret is sleeve (cover) made of copper (machined) under the shining appearance.

It cuts off damaging influence caused by noise and magnetic field from outside and leads to flexible and straightforward sound quality with good S/N ratio.
Furthermore, the terminal section made of brass coated with gold secures connection and greatly contributes to accurate information transmission.
Both male and female plugs are appropriate for Ø9mm cable.





XLR/RCA Converting Plug

This is an adapter to convert the input/output terminal of balance (XLR) to RCA (female). The sleeve (cover) made of copper (machined) cuts off the damaging influence caused by noise and magnetic field from outside.







AAEX2013-Accessory

Specification

RCA Plug
Model RCA-7S RCA-9S RCA-9B
Suitable cable diameter (mm) 7 9 9
Dimension (mm)

60 x 15Ø ±0.5

60 x 15Ø ±0.5 72 x 14Ø ±0.5
Materials

Cover: Copper+Pearl silver coat (S), Copper+Black pearl coat (B)
Body: Copper+24 gold coat
Insulation: POM
Ring: Aluminum(Alumite processed)

How to connect

Soldering

XLR Plug
Model XLR-9M(male) XLR-9F(female)
Suitable cable diameter (mm) 9 9
Dimension (mm) 49 x 20Ø ±0.5 63 x 20Ø ±0.5
Materials

Cover:Copper+Pearl silver coat
Body: Brass +24 gold coat
Insulation: PBT

How to connect

Soldering

XLR/RCA Converting Plug
Model X/R-9FF2R(Red)
X/R-9FF2B(Black)
X/R-9FF3R(Red)
X/R-9FF3B(Black)
X/R-9MF2R(Red)
X/R-9MF2B(Black)
X/R-9MF3R(Red)
X/R-9MF3B(Black)
Suitable cable diameter (mm) XLR(female)

RCA(female)
Second HOT
XLR(female)

RCA(female)
Third HOT
XLR(male)

RCA(female)
Second HOT
XLR(male)

RCA(female)
Third HOT
Dimension (mm) 75× 20Ø ±0.5 62× 20Ø ±0.5
Materials

Cover:Copper+Pearl silver coat
Body: Copper + Brass + 24 gold coat

*Product Type, standard, design, price may change without advance notice
in order to improve the product, etc.
