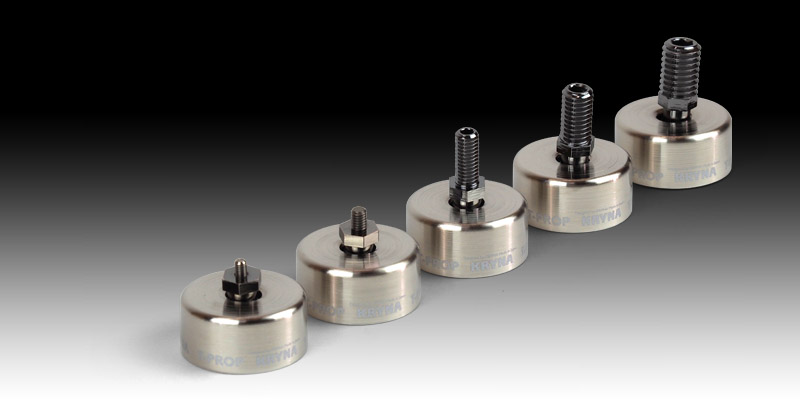

Insulator "T-PROP"(Patent pending)

Insulator that is easy to move and
has an integrated structure of a spike and receptacle.

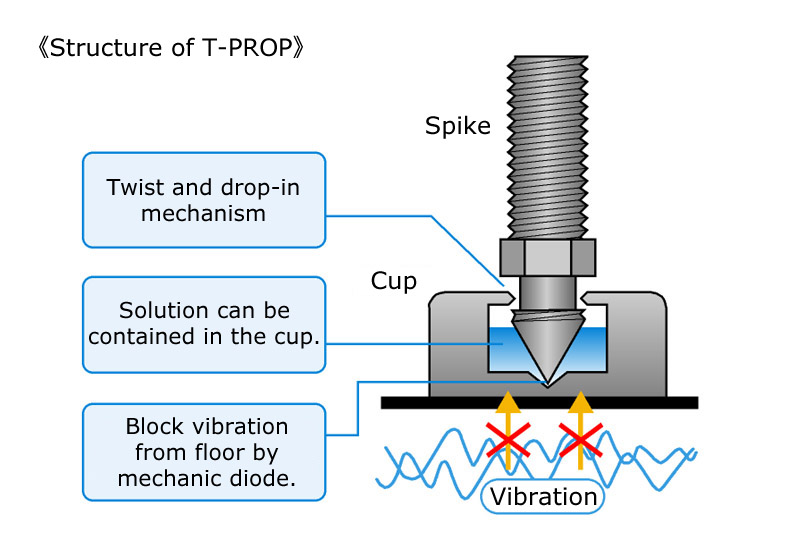

T-PROP Structure

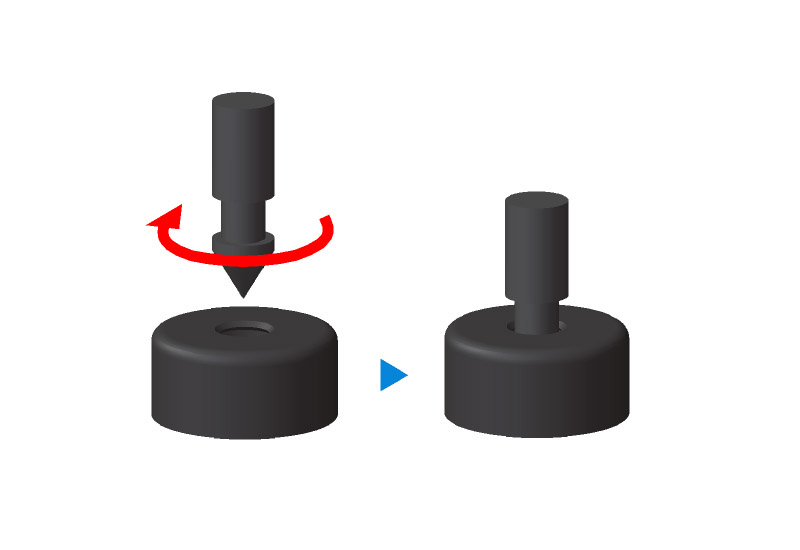

Twist and drop-in mechanism

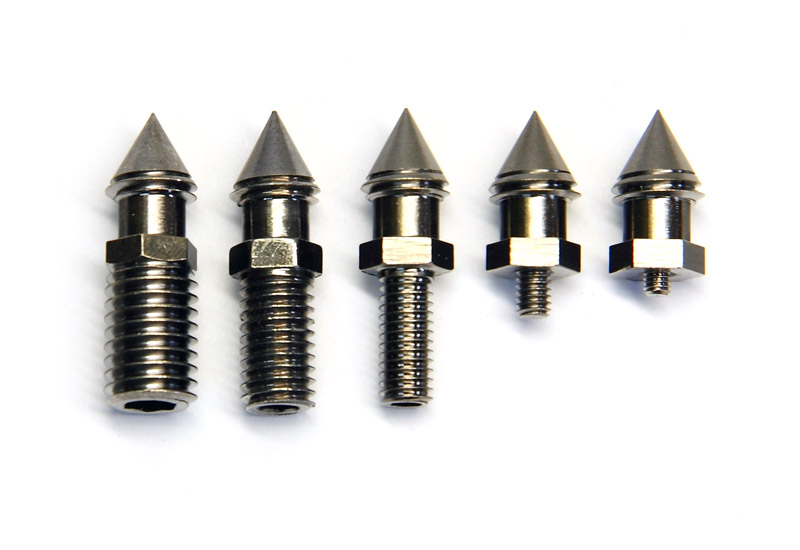

Types of spikes
From left M10, M8, M6, M4, M3

T-PROP+ Audio spice

The T-PROP is an insulator with twist and drop-in mechanism where spike and cup (receptacle) are separated in two pieces. Because both spike and cup have threading, it is possible to screw spike into the cup and make it an integrated structure. (Twist and drop-in mechanism/patent pending)

Even if a spike is screwed in the cup, there is still a slight space between the two. When force is applied downwards (when it is placed on the floor), only the edge of the spike touches the cup. This structure can easily achieve the innovative mechanic diode mechanism where vibration is released from the tip while vibration from the floor is blocked.

In case of a standard separate-structured insulator, receptacle remains in the original position if the system such as speaker stand or rack is moved. Unless it is carefully set, spike may scratch the floor or spike may get stuck on the floor.

Because of the integrated structure of the T-PROP, you can lift the entire system and move it in a safe and smart way as the cup will hold the spike when the entire system is lifted.

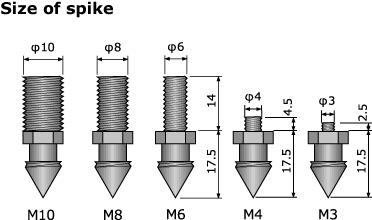

5 screw sizes of the spike are available: 10mm, 8mm, 6mm, 4mm and 3mm.
It can be used as a speaker stand, audio rack, or replacement for the legs of components such as amplifiers or players.
You can choose the size that matches with your system.

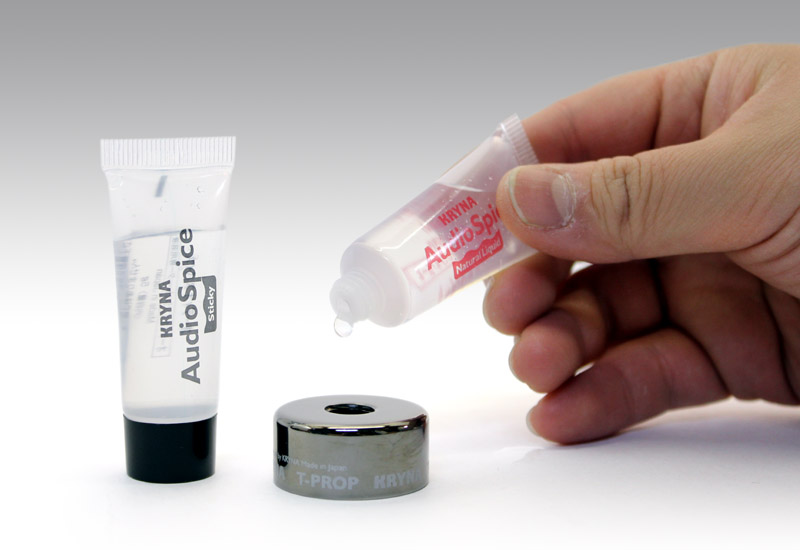

Furthermore, in the hollow space within the cup of the T-PROP, you can inject the insulation solution, "AudioSpice". This way, insulation effect is even more strengthened.




*T-PROP can be used with KRYNA Stage.

> To go to the special web-site of Stage, click here.





VGP-Insulator

AAEX2012-Insulator
VGP2011SUMMER-Insulator

Specification

Model TP-1 M10
TP-1 M8
TP-1 M6
TP-3 M10
TP-3 M8
TP-3 M6
TP-4 M10
TP-4 M8
TP-4 M6
Dimension
(mm)
Cup/ Ø30×H14.1
Spike/ Ø10×H31.5 (Standard)
Ø8×H31.5
Ø6×H31.5
Height when cup and spike are combined/ 33.5
Adjustable height of spike/ 14
Material Brass
Load weight Up to 15kg/unit is suggested.


Model TP-1 M4 TP-3 M4 TP-4 M4
Dimension
(mm)
Cup/Ø30×H14.1
Spike/Ø4×H17.5 (with adapter: Ø4×22.0)
Height when cup and spike are combined/ 19.5
Height when cup, spike and adapter are combined/ 24.0
Adjustable height of spike/ 4.5
Material Brass
Load weight Up to 15kg/unit is suggested.



Model TP-1 M3 TP-3 M3 TP-4 M3
Dimension
(mm)
Cup/Ø30×H14.1
Spike/Ø3×H17.5 (with adapter: Ø3×20.0)
Height when cup and spike are combined/ 19.5
Height when cup, spike and adapter are combined/ 22.0
Adjustable height of spike/ 2.5
Material Brass
Load weight Up to 15kg/unit is suggested.

spike



*Product Type, standard, design, price may change without advance notice
in order to improve the product, etc.
